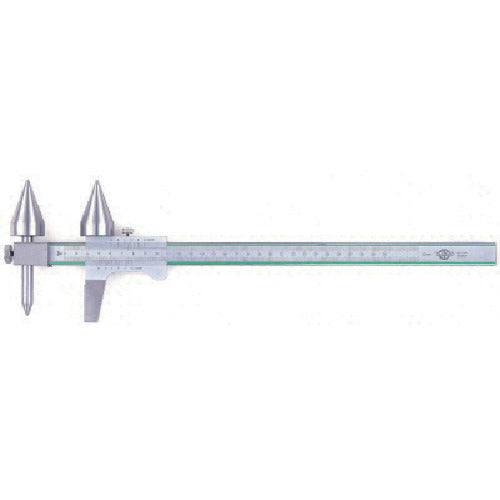

Kanon offset round hole pitch caliper 300mm RM2-30 1 piece

Catalog number: RM2-30 Features: ●It is possible to measure the pitch between holes of different diameters as well as holes of equal diameter. Applications: ●A measuring tool necessary for all processing sites. Specifications: ●Manufacturer code: 121202 ●Measuring range (mm): 35-300 (upper row), 25-300 (lower row) ●Maximum allowable error (mm): ±0.11 ●Minimum display (mm): 0.1 ●Jaw dimensions (mm): 50 ●Compatible hole diameter (mm): 3-29 ●Depth bar: None ●Total length (mm): 422 ●Instrument error (mm): ±0.10 ●Minimum display (mm): 0.1 ●Minimum reading value 0.1mm Material/Finish: ●Stainless steel (SUS420J2)
