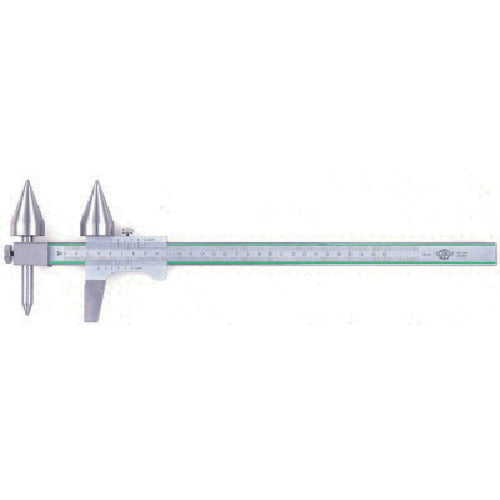

Kanon offset round hole pitch caliper 600mm RM2-60 1 piece

Catalog number: RM2-60 Features: ●It is possible to measure the pitch between holes of different diameters as well as holes of equal diameter. Applications: ●A measuring tool necessary for all processing sites. Specifications: ●Manufacturer code: 121203 ●Measuring range (mm): 35-600 (upper row), 25-600 (lower row) ●Maximum allowable error (mm): ±0.15 ●Minimum display (mm): 0.1 ●Jaw dimensions (mm): 70 ●Compatible hole diameter (mm): 3-29 ●Depth bar: None ●Total length (mm): 781 ●Instrument error (mm): ±0.10 ●Minimum display (mm): 0.1 ●Minimum reading value 0.1mm Material/Finish: ●Stainless steel (SUS420J2)
