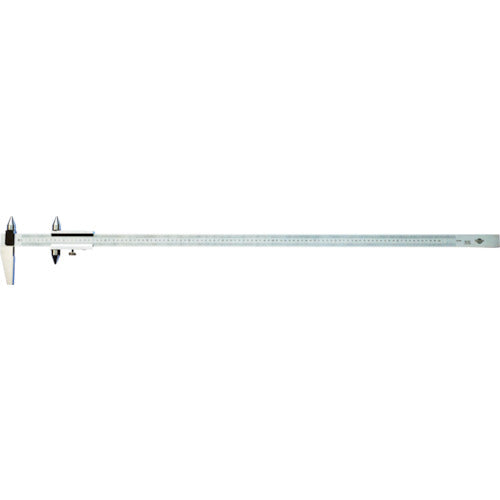

Kanon Round Hole Pitch Caliper 1000mm RM100DX 1 piece

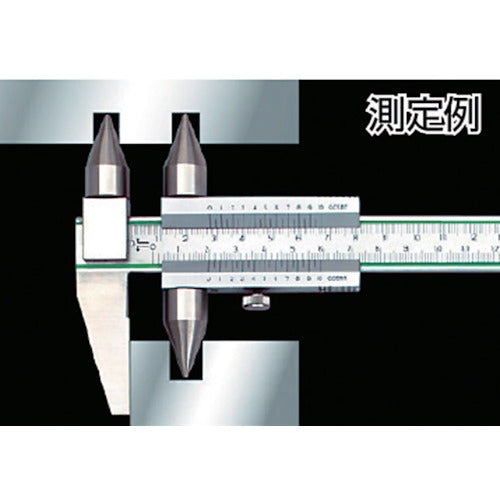

Catalog number: RM100DX Features: ● This caliper is ideal for measuring the pitch between equal diameter round holes. ● It is also possible to measure the pitch between round holes from the end face. Applications: ● For measuring pitch at drilling processing sites. Specifications: ● Manufacturer code: 121115 ● Measurement range (mm): 21-1000 (upper row), 11-1000 (lower row) ● Maximum allowable error (mm): ±0.15 ● Minimum display (mm): 0.05 ● Jaw dimensions (mm): 90 ● Suitable hole diameter (mm): 5.0-19 ● Depth bar: None ● Total length (mm): 1200 ● Instrument error (mm): ±0.10 ● Minimum display (mm): 0.05
