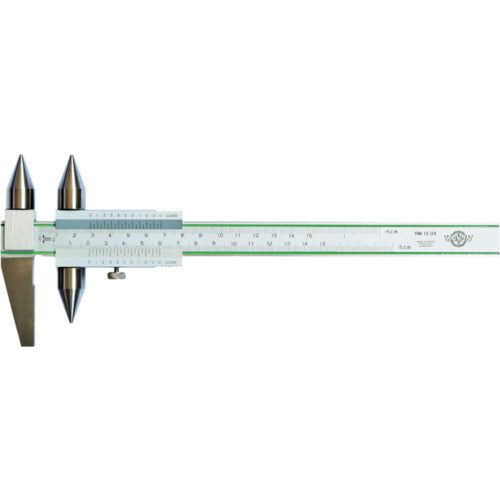

Kanon Round Hole Pitch Caliper 150mm RM15DX 1 piece

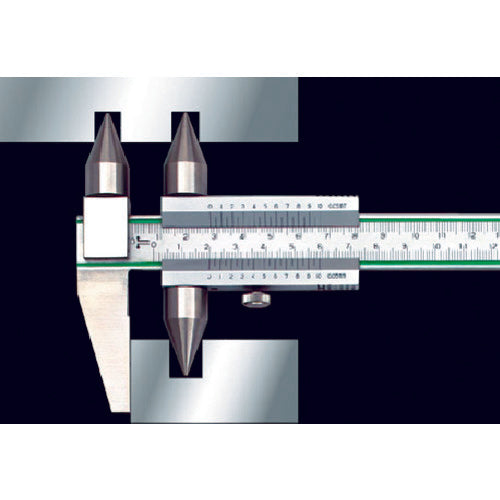

Catalog number: RM15DX Features: ● This caliper is ideal for measuring the pitch between equal diameter round holes. ● It is also possible to measure the pitch between round holes from the end face. Applications: ● For measuring pitch at drilling processing sites. Specifications: ● Manufacturer code: 121111 ● Measurement range (mm): 17 to 150 (upper row), 9 to 150 (lower row) ● Maximum allowable error (mm): ±0.07 ● Minimum display (mm): 0.05 ● Jaw dimensions (mm): 50 ● Suitable hole diameter (mm): 3.0 to 15 ● Depth bar: None ● Total length (mm): 280 ● Instrument error (mm): ±0.05 ● Minimum display (mm): 0.05
