Kanon Round Hole Pitch Caliper 200mm RM20DX 1 piece

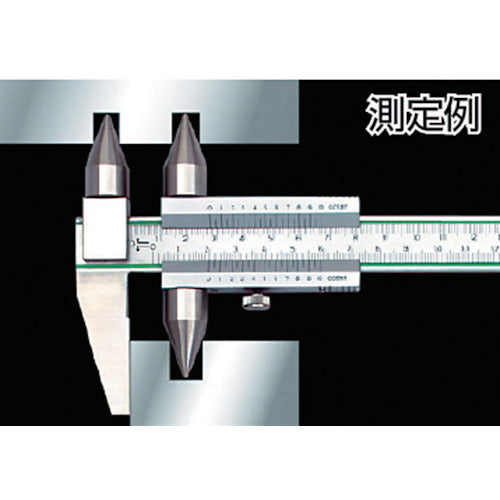

Catalog number: RM20DX Features: ● This caliper is ideal for measuring the pitch between equal diameter round holes. ● It is also possible to measure the pitch between round holes from the end face. Applications: ● For measuring pitch at drilling processing sites. Specifications: ● Manufacturer code: 121112 ● Measurement range (mm): 17-200 (upper), 9-200 (lower) ● Maximum allowable error (mm): ±0.07 ● Minimum display (mm): 0.05 ● Jaw dimensions (mm): 50 ● Suitable hole diameter (mm): 3.0-15 ● Depth bar: None ● Total length (mm): 330 ● Instrument error (mm): ±0.05 ● Minimum display (mm): 0.05
