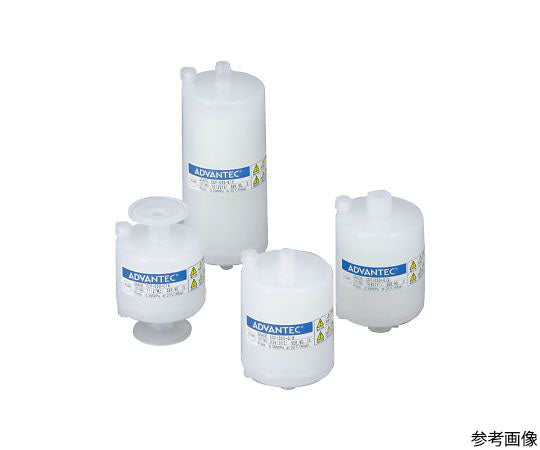

Capsule Cartridge Filter CCF-020-C1N 41142141 1 piece

Autoclave sterilization is possible (in-line steam sterilization is not possible). All products have undergone integrity testing, making them highly reliable products. Effective filtration area (cm2): 570 Pore ​​size (μm): 0.20 Maximum operating pressure: 0.39MPa (25℃) Maximum operating temperature: 60℃ Sterilization method *2: EOG, autoclave *3 Bubble point (isopropyl alcohol) (MPa): ≥8.8×10^-2 Material: Filter/PTFE, Support media/Polypropylene, Others/Polypropylene Hydrophobicity Dimensions (φ77mm x total length mm) *4: 102 IN/OUT shape: 1.5S ferrule *CCF-005 and A10 membrane filters are made by bonding two membrane filters with different pore sizes together. *2...Repeated autoclave sterilization may damage the filter. We recommend that you perform an integrity test on the filter before use. ※3・・・121℃ 30 minutes *4...IN and OUT shapes are H-code product dimensions
