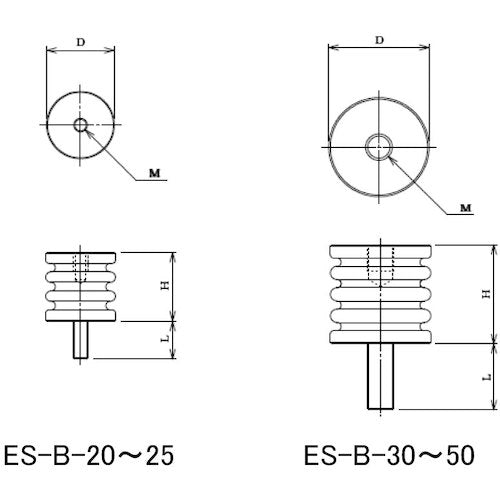

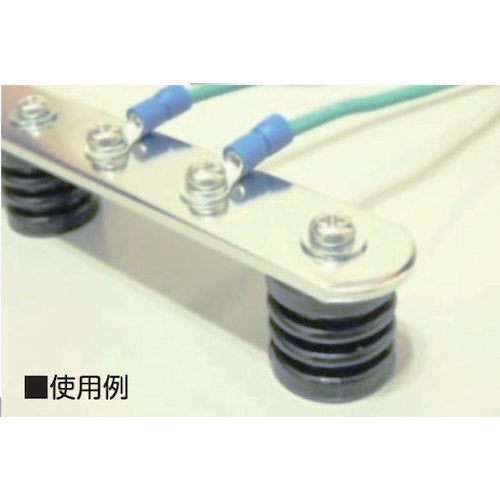

Catalogue number: ESM-B-20-5-VO Features: ●Strength and durability are improved compared to conventional products. ●Excellent insulation. Applications: ●As an insulation stand for mounting equipment such as switchboards, distribution boards, and control panels. ●For busbar connections and insulation support. Specifications: ●Screw diameter: M5 ●Height (mm): 20 ●Outer diameter (mm): 15 ●Nominal diameter: M5 ●Effective depth (mm): 6 ●Bolt length (mm): 11 ●Low voltage insulation support ●Flame retardant grade UL-94-v0 standard Material/Finish: ●PP (polypropylene) ●Insert nut, bolt: Iron (trivalent chromate plating finish)
