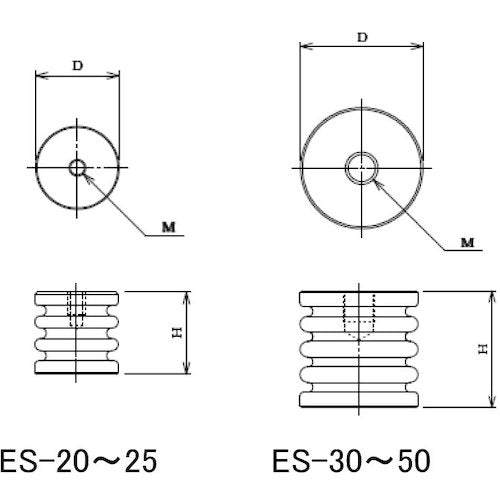

Catalog number: ES-20-5-VO Features: ●Strength and durability are improved compared to conventional products. ●Excellent insulation. ●Flame-retardant grade UL-94-V0 standard Applications: ●As an insulation stand for mounting equipment such as switchboards, distribution boards, and control panels. ●For busbar connections and insulation support. Specifications: ●Screw diameter: M5 ●Height (mm): 20 ●Outer diameter (mm): 20 ●Nominal diameter: M5 ●Effective depth (mm): 6 ●Low-voltage insulation support ●Flame-retardant grade UL-94-v0 standard Materials/Finish: ●PP (polypropylene) ●Insert nuts and bolts: Iron (trivalent chromate plating finish)
