Gasket Flange full packing 10K 100A 1.5T D6000-10K-100A-1.5T-FF 1 piece

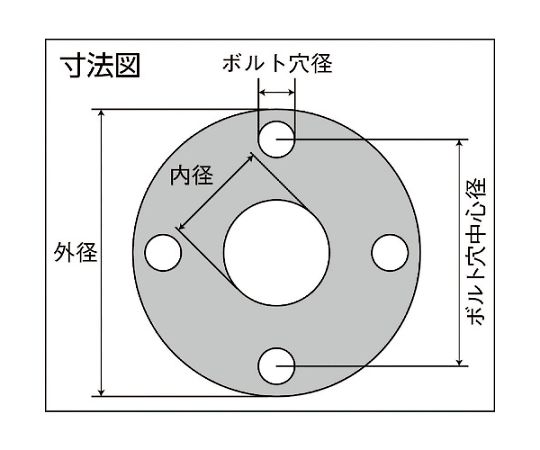

This sheet gasket is made by using high-quality non-asbestos fibers and a synthetic rubber binder with excellent oil resistance, mixing in a small amount of filler, and then rolling and vulcanizing it. This is a non-asbestos joint sheet that is widely used for general piping for water-based or oil-based fluids. It has passed official testing for JIS S 3200-7, the suitability standard for plumbing equipment. For packing of water-based fluids (water, hot water), oil-based fluids (thermal oil, lubricating oil, fuel oil), etc. As a gasket for pipe flanges and equipment in various industries. Nominal diameter A: 100 Nominal diameter B: 4 Inner diameter (mm): 115 Outer diameter (mm): 210 Thickness (mm): 1.5 Operating pressure (K): 10 Bolt hole center diameter (mm): 175 Number of bolt holes: 8 Bolt hole diameter (mm): 19 Operating temperature range: -100 to 150°C Material/Finish: Inorganic fiber, aramid fiber, oil-resistant synthetic rubber Country of Origin: Japan Code number: 116-2780
