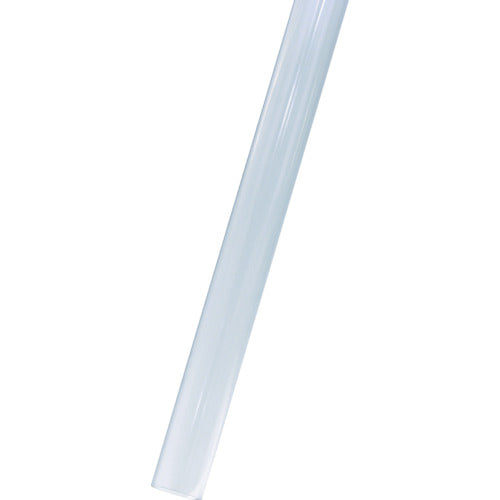

Kubota Chemicals Transparent PVC Pipe TV20X1M TV20X1M 1 piece

Catalog number: TV20X1M Features: ● PVC pipe with excellent corrosion resistance and chemical resistance. ● Same outer diameter as VP pipe, can be connected with PVC fittings. Applications: ● For 6-ply pipes and drainage pipes in factories that require confirmation of fluid. Specifications: ● Nominal diameter (mm): 20 ● L (mm): 1000 ● D (mm): 26 ● t (mm): 3 ● Length (mm): 1000 ● Outer diameter (mm): 26 ● Thickness (mm): 3 ● Maximum operating pressure (MPa): 1.0MPa ● Operating temperature range (℃): 5℃ to 35℃ ● Operating temperature range: 5 to 35℃ ● Maximum operating pressure: 1.0MPa ● Unpressurized drainage operating temperature range: 5 to 60℃ Material/Finish: ● Rigid polyvinyl chloride (PVC) Caution: ● Avoid storing various products in places under the blazing sun or in places with extreme heat. Store indoors, or if you have to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
