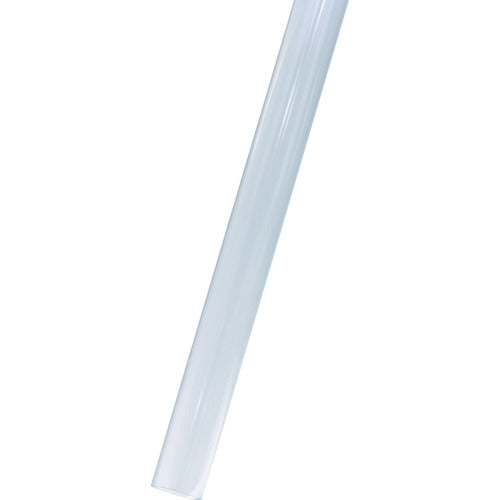

Kubota Chemicals Transparent PVC Pipe TV40X1M TV40X1M 1 piece

Catalog number: TV40X1M Features: ● PVC pipe with excellent corrosion resistance and chemical resistance. ● Same outer diameter as VP pipe, can be connected to PVC fittings. Applications: ● For 12-ply pipes and drainage pipes in factories where fluid confirmation is required. Specifications: ●Nominal diameter (mm): 40 ●L (mm): 1000 ●D (mm): 48 ●t (mm): 3.5 ●Length (mm): 1000 ●Outer diameter (mm): 48 ●Thickness (mm): 3.5 ●Maximum operating pressure (MPa): 1.0 MPa ●Operating temperature range (℃): 5℃ to 35℃ ●Operating temperature range: 5 to 35℃ ●Maximum operating pressure: 1.0 MPa ●Pressureless drainage operating temperature range: 5 to 60℃ Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●When storing various products, avoid storing them in direct sunlight or in places with extreme heat. Store them indoors, or if it is unavoidable to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
