Kubota Chemicals Transparent TS Metal Valve Socket TS-MVS20 C-TSMVS20 1 piece

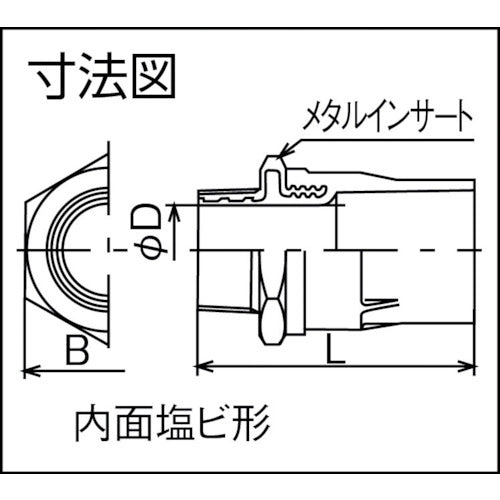

Catalog number: C-TSMVS20 Features: ●You can check the insertion gap and whether it is glued, allowing for reliable construction management. Applications: ●Fittings for water supply pipes in apartment buildings, detached houses, stores, and facilities. Specifications: ●Nominal diameter of PVC pipe: 20 ●Dimensions (mm) D: 18 ●Dimensions (mm) L: 75 ●Thread: R3/4 ●Maximum operating pressure (MPa): 1.0MPa ●Operating temperature range (℃): 5℃ to 35℃ ●Dimensions (mm) B: 40 ●Operating temperature range: 5 to 35℃ ●Maximum operating pressure: 1.0MPa Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●Avoid storing various products in places under the blazing sun or in extremely hot places. Store indoors, or if you have to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
