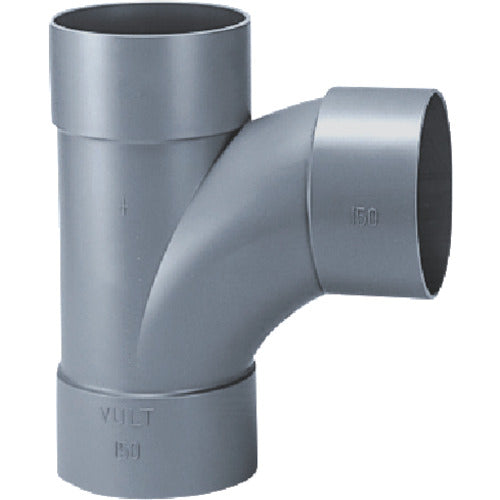

Kubota Chemix DV joint 90° large bend YDV-LT 100x75 DVLT100X75 1 piece

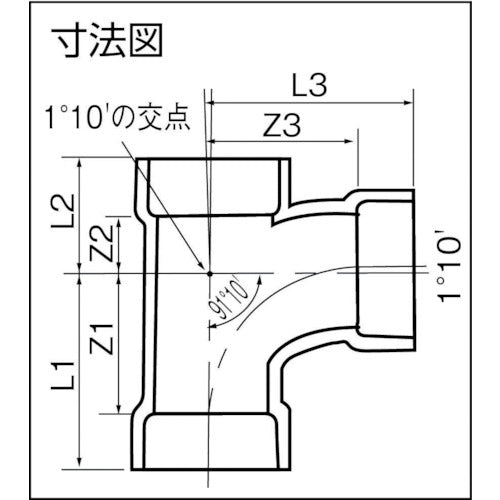

Catalog number: DVLT100X75 Features: ●Lightweight drainage joint with excellent corrosion and chemical resistance. ●The inner stopper is for VP pipes. Applications: ●For drainage and ventilation piping in apartment buildings, detached houses, stores, and facilities. Specifications: ●Nominal diameter of PVC pipe: 100 x 75 ●Dimensions (mm) L3: 150 ●Dimensions (mm) L2: 83 ●Dimensions (mm) L1: 150 ●Dimensions (mm) Z3: 110 ●Dimensions (mm) Z2: 33 ●Dimensions (mm) Z1: 100 ●Operating temperature range: 5 to 60°C ●Operating pressure: No pressure ●JIS K6739 standard Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●Avoid storing various products in places under the blazing sun or in extremely hot places. Store indoors, or if you have to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
