Kubota Chemicals HI Metal Faucet Tee HI-MWT 20X13 HIMWT20X13 1 pc

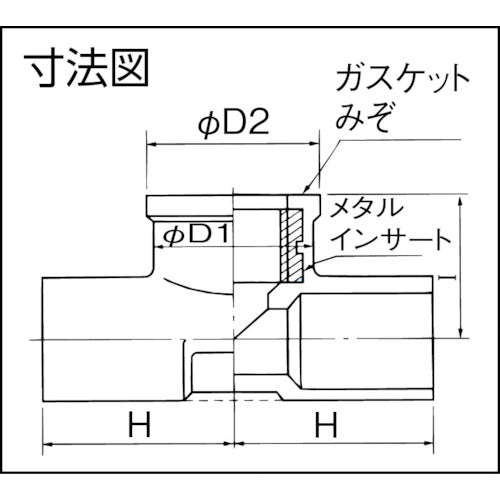

Catalog number: HIMWT20X13 Features: ● Maintains excellent impact resistance even at low temperatures, minimizing damage caused by impact during cold seasons or other piping work. Applications: ● Water supply pipes for apartment buildings, detached houses, stores, facilities, etc. Used during cold seasons or other piping work. Specifications: ● PVC pipe nominal diameter: 20 x 13 ● Dimensions (mm) D: 33 ● Dimensions (mm) H: 47 ● Maximum operating pressure (MPa): 1.0 MPa ● Operating temperature range (℃): 5℃ to 35℃ ● Dimensions (mm) D2: 34 ● Dimensions (mm) I: 34 ● Thread: Rp1/2 ● Dimensions (mm) D1: 30 ● Operating temperature range: 5 to 35℃ ● Design water pressure: 1.0 MPa ● JIS K6743 standard ● Impact strength (Charpy) 17.7 or higher ● Thread material: Metal Material/Finish: ● Impact-resistant rigid polyvinyl chloride (HI-PVC) Caution: ● Avoid storing various products in places exposed to the hot sun or extreme heat. Store indoors, or if it is unavoidable to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
