Kubota Chemix HI joint faucet tee HI-WT20 HIWT20 1 piece

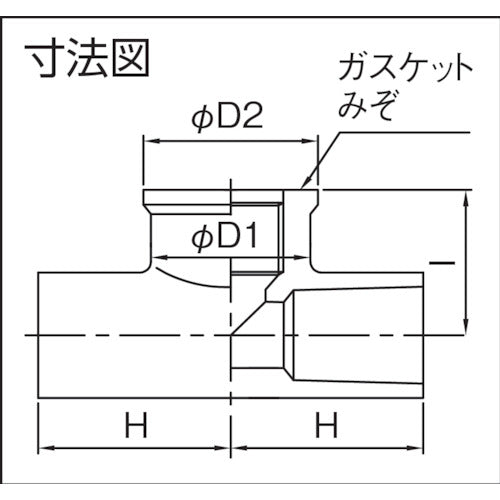

Catalog number: HIWT20 Features: ● Maintains excellent impact resistance even at low temperatures, minimizing damage caused by impacts during cold weather or other pipe construction. Applications: ● Water supply pipe joints in apartment buildings, detached houses, stores, and facilities. Especially for sites where adhesive construction management is important. Specifications: ● PVC pipe nominal diameter: 20 ● Dimensions (mm) D: 33 ● Dimensions (mm) H: 51 ● Maximum operating pressure (MPa): 1.0MPa ● Operating temperature range (℃): 5℃ to 35℃ ● Dimensions (mm) D2: 42 ● Screw: Rp3/4 ● Dimensions (mm) D1: 37 ● Dimensions (mm) I: 36 ● Operating temperature range: 5 to 35℃ ● Design water pressure: 1.0MPa ● JIS K6743 standard ● Screw material: Resin Material/Finish: ● Rigid polyvinyl chloride (PVC) Caution: ● Store various products in a place away from the blazing sun or in places with extreme heat. Store indoors, or if you have to store them outdoors, cover them with a sheet to avoid direct sunlight and rainwater. ● Use metal fittings in places where bending or vibration is required or repeated removal is required. ● Do not place near bonfires, torch lamps, construction lighting lamps, etc. PVC pipes may soften, deform, or carbonize.
