Kubota Chemicals HT Metal Faucet Elbow HT-MWL 13 HTMWL13 1 pc

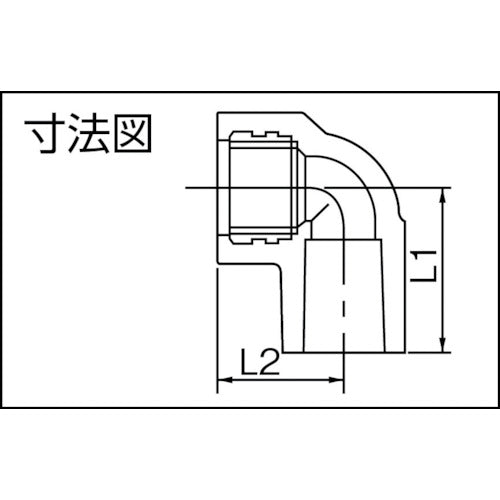

Catalog number: HTMWL13 Features: ● PVC fittings with excellent heat resistance. Applications: ● For hot water facilities, kitchens, and water heater piping. Specifications: ● PVC pipe nominal diameter: 13 ● Thread: Rp1/2 ● Dimensions (mm) D: 26 ● Dimensions (mm) D1: 35 ● Dimensions (mm) L1: 35 ● Dimensions (mm) L2: 29 ● Operating temperature range: 5 to 40°C (Maximum operating pressure 1.0MPa) ● Operating temperature range: 71 to 90°C (Maximum operating pressure: 0.2MPa) ● JIS K6777 standard Material/Finish: ● Rigid polyvinyl chloride (HT-PVC) Caution: ● Store various products in a place away from the blazing sun or extreme heat. Store indoors, or if you have to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
