Kubota Chemix J One Quick 2 JOQ2-L Elbow 20PB JOQ2-L 20 PB 1 piece

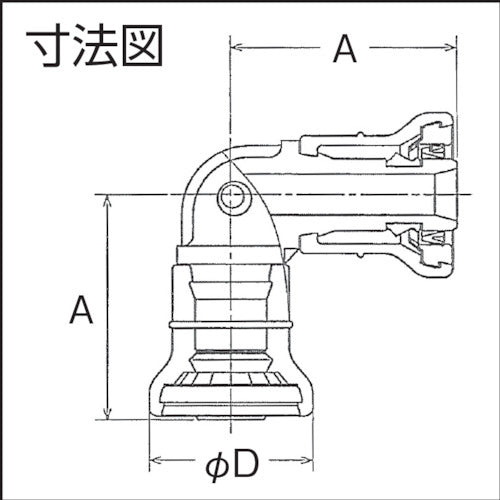

Catalog number: JOQ2-L 20 PB Features: ●One-touch fitting for resin pipes (PEX/PB) made of transparent resin. ●Easy installation by simply inserting the resin pipe. No need for in-core insertion, chamfering, or marking. ●Since the connection is transparent, you can check the installation at a glance. Applications: ●For building facilities, water supply and hot water piping for homes, and cold and hot water piping for air conditioning Specifications: ●Nominal diameter (mm): 20 ●L (mm): 71 ●D (mm): 41 ●Compatible pipes: JIS K 6770 cross-linked polyethylene pipe, JIS K 6778 polybutene pipe ●A (mm): 50 Material/Finish: ●Body: PPS resin Note: ●Nominal diameters 10mm and 13mm are for both PB and PEX, and nominal diameters 16mm and 20mm are for PB and PEX only.
