Kubota Chemicals TS Metal Faucet Elbow TS-MWL 20X13 TSMWL20X13 1 pc

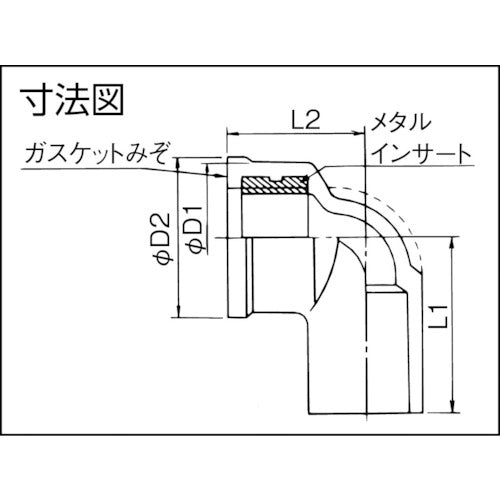

Catalog number: TSMWL20X13 Features: ● A joint with excellent corrosion resistance and chemical resistance. Applications: ● Water supply pipes for apartment buildings, detached houses, stores, facilities, etc. Specifications: ● PVC pipe nominal diameter: 20 x 13 ● Dimensions (mm) D: 33 ● Maximum operating pressure (MPa): 1.0MPa ● Operating temperature range (℃): 5℃ to 35℃ ● Thread: Rp1/2 ● Dimensions (mm) L: 47 ● Dimensions (mm) D1: 30 ● Dimensions (mm) L1: 47 ● Dimensions (mm) D2: 34 ● Dimensions (mm) L2: 33 ● Operating temperature range: 5 to 35℃ ● Maximum operating pressure: 1.0MPa ● JIS K6743 standard ● Screw material: Metal Material/Finish: ● Rigid polyvinyl chloride (PVC) Caution: ● When storing various products, avoid storing them in direct sunlight or in places with extreme heat. Store them indoors, or if it is unavoidable to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
