Kubota Chemix TS fitting elbow TS-L 20X13 TSL20X13 1 piece

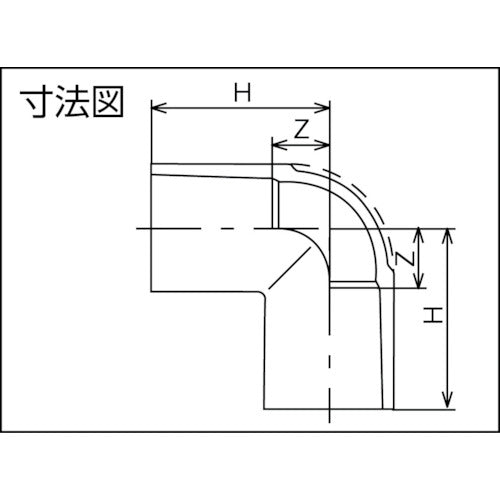

Catalog number: TSL20X13 Features: ●Coupling with excellent corrosion and chemical resistance. Applications: ●Water supply pipes for apartment buildings, detached houses, stores, facilities, etc. Specifications: ●PVC pipe nominal diameter: 20 x 13 ●Dimensions (mm) H: 20 side 47, 13 side 41 ●Dimensions (mm) Z: 20 side 12, 13 side 15 ●Operating temperature range: 5 to 35°C ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●Avoid storing various products in places under the blazing sun or in places with extreme heat. Store indoors, or if you have to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater. ●TSL28 and TSL35 are non-JIS standard products.
