Kubota Chemix VU fitting, different diameter tee, VU-DT75x50, VUDT75X50, 1 piece

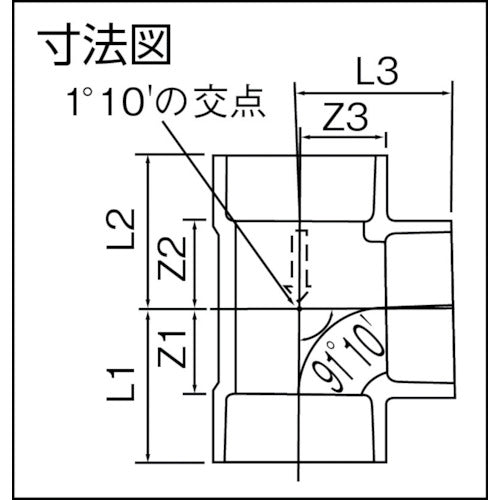

Catalog number: VUDT75X50 Features: ●Lightweight drainage joint with excellent corrosion and chemical resistance. ●Inner stopper is for VU pipes. Applications: ●For drainage and ventilation piping in apartment buildings, detached houses, stores, and facilities. Specifications: ● PVC pipe nominal diameter: 75 x 50 ● Dimensions (mm) Z1: 34 ● Dimensions (mm) Z2: 35 ● Dimensions (mm) Z3: 48 ● Dimensions (mm) L1: 74 ● Dimensions (mm) L2: 75 ● Dimensions (mm) L3: 73 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): 5 to 35 ● Operating temperature range: 5 to 60℃ ● Operating pressure: No pressure ● AS-38 standard, some manufacturer standards Material/Finish: ● Rigid polyvinyl chloride (PVC) Caution: ● When storing various products, avoid storing them in direct sunlight or places with extreme heat. Store them indoors, or if it is unavoidable to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
