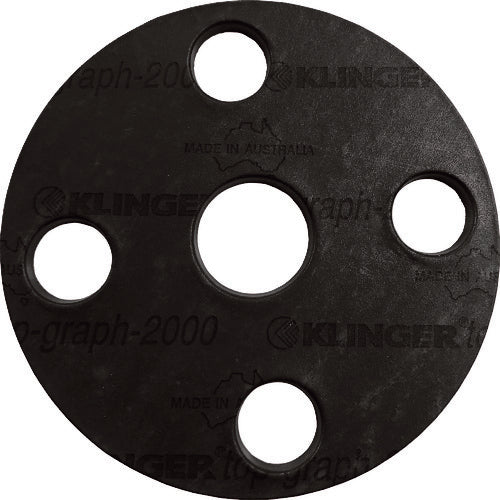

Klinger flange packing (5 pieces) TG2000-FF-3T-10K-20A TG2000-FF-3T-10K-20A 1 bag

Catalog number: TG2000-FF-3T-10K-20A Features: ●Compared to conventional products, this material has high flexibility when used at high temperatures. ●The surface is treated to prevent adhesion and corrosion. ●This joint sheet does not contain asbestos. ●Contains expanded graphite. Uses: ●Packing for JIS flanges. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Inner diameter (mm): 28 ●Outer diameter (mm): 100 ●Thickness (mm): 3 ●Bolt hole center diameter (mm): 75 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 15 ●Color: Black ●Heat resistance temperature: -150 to 300°C (saturated steam 250°C) Material/Finish: ●Expanded graphite and synthetic fiber are added to NBR binder and rolled into a sheet. Note: ●If sufficient tightening surface pressure cannot be obtained (15MPa or more is recommended), use the inner packing shape. ●For gas seals, use inner packing shape with thickness of 1.5mm or less. ●[Custom made available]
