The antibacterial and deodorizing HEPA filter keeps the environment inside the booth clean by removing 99.97% of particles larger than 0.3 μm.
We aim to save energy by adopting LED lighting.
This compact type makes it possible to create a locally clean environment.

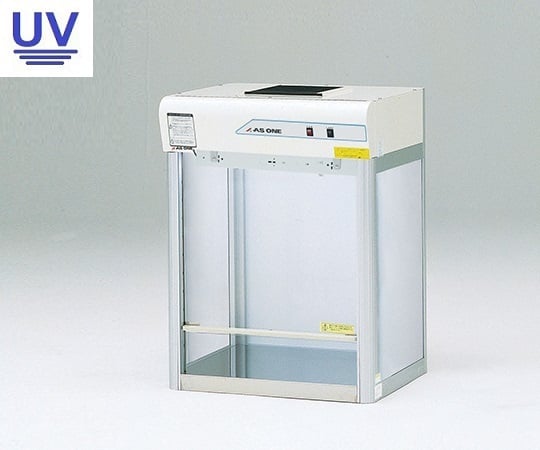

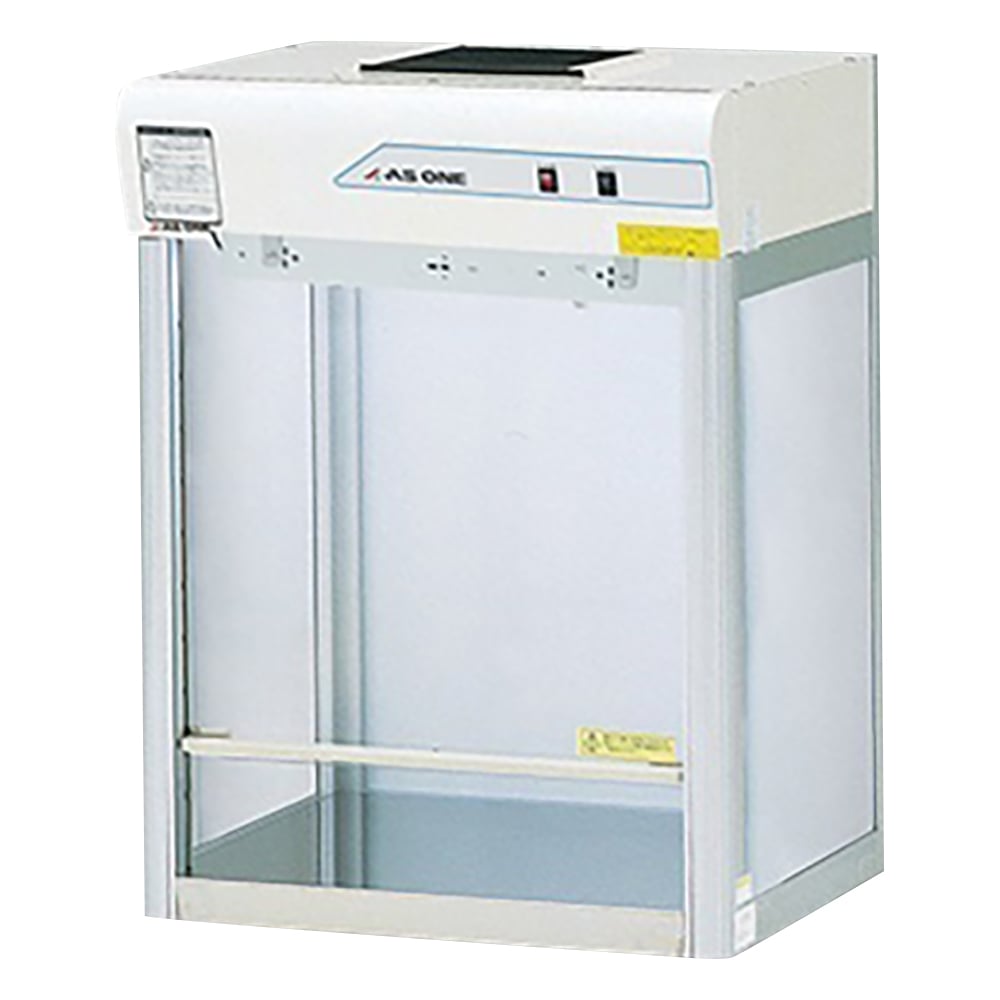

The UV type is equipped with a germicidal lamp, allowing sterilization inside the booth. Dimensions (mm): 600 x 503 x 811
Weight (kg): 24
Pre-filter: Modacrylic/polyester
Dust collection efficiency: 99.97% or more (0.3 μm particles)
Power supply: AC100V 50/60Hz, cord length 1.5m (3P plug)
Material: Work surface: Stainless steel (SUS304), Front door: PC (polycarbonate), Side panel: Aluminum composite panel, Frame: Aluminum frame (anodized)
HEPA filter: □200×1 piece
Airflow speed (m/s): 0.6
Fan air volume (m3/min): 1
Effective working surface dimensions (mm): 557 x 410
Power consumption (W): 74
Lighting (W): 1 x 7W LED light
*The image shows the fluorescent lighting specification (old specification). There are no changes to the appearance other than the lighting being LED.
*Shipping, delivery, installation, assembly, etc. fees are required separately. Please contact us for details.
