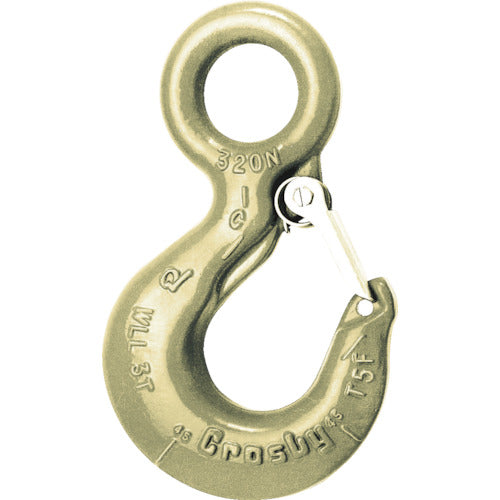

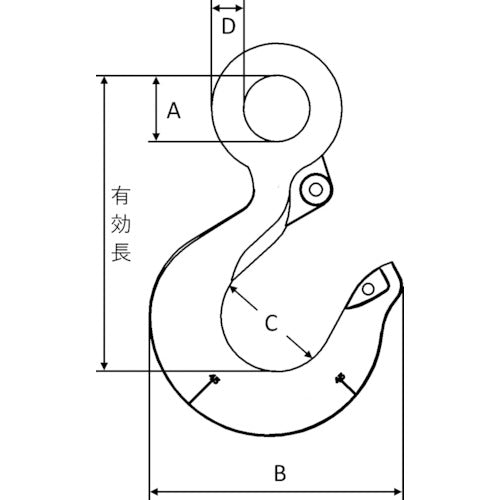

Catalogue number: L-320AN-2.5 Features: ● Hook with anti-detachment fitting. ● Quick checks in two places. ● The quick check is marked 45 degrees from the center, and is a mark that lets you know at a glance that the lifting angle is within 90 degrees. Applications: ● Lifting fitting for wire and chain slings. Specifications: ● Basic load capacity (t): 2.5 ● Dimension (mm) A: 28.7 ● Dimension (mm) B: 89.5 ● Dimension (mm) C: 38.1 ● Dimension (mm) D: 14.0 ● Dimension (mm) d: 14.0 ● Effective length l (mm): 105.0 ● Latch: S-4320 Material/Finish: ● Alloy steel
