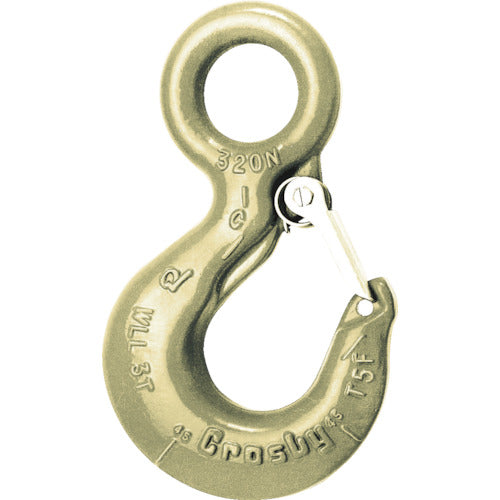

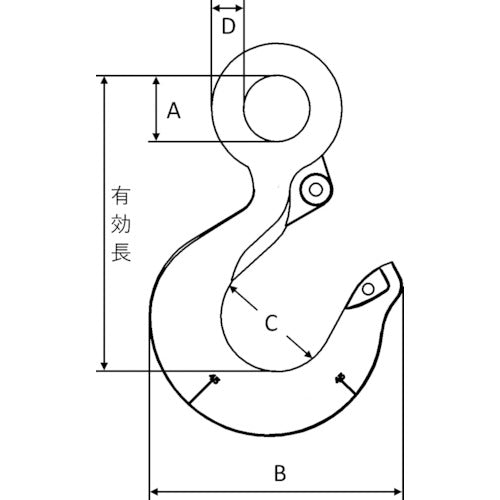

Catalogue number: L-320AN-3.2 Features: ● Hook with anti-detachment fitting. ● Quick checks in two places. ● The quick check is marked 45 degrees from the center, and is a mark that lets you know at a glance that the lifting angle is within 90 degrees. Applications: ● Lifting fitting for wire and chain slings. Specifications: ● Basic load capacity (t): 3.2 ● Dimension (mm) A: 31.8 ● Dimension (mm) B: 101.0 ● Dimension (mm) C: 41.4 ● Dimension (mm) D: 14.7 ● Dimension (mm) d: 14.7 ● Effective length l (mm): 119.0 ● Latch: S-4320 Material/Finish: ● Alloy steel
