Crosby Shackle, Screw-in, Straight, 0.5t, G210-6, 1 piece
Crosby Shackle, Screw-in, Straight, 0.5t, G210-6, 1 piece
Regular price
¥3,775
Regular price
Sale price
¥3,775
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

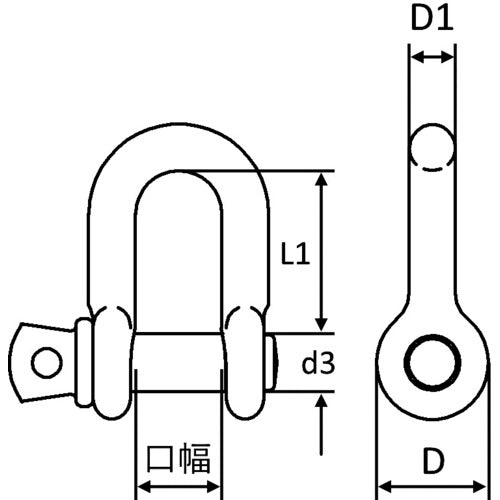

Catalogue number: G210-6 Features: ●Features a zinc-plated body and red pins. Applications: ●For connecting various items, including lifting fixtures, at loading, transporting, and civil engineering sites. Specifications: ●Basic load capacity (t): 0.5 ●Opening width (mm): 11.9 ●D (mm): 15.5 ●D1 (mm): 6.35 ●L1 (mm): 22.4 ●Dimensions (mm) d3: 7.85 ●Dimensions (mm) D: 15.5 ●Dimensions (mm) D1: 6.35 ●Dimensions (mm) L1: 22.4 ●Straight, screw-in type Material/Finish: ●Alloy steel
