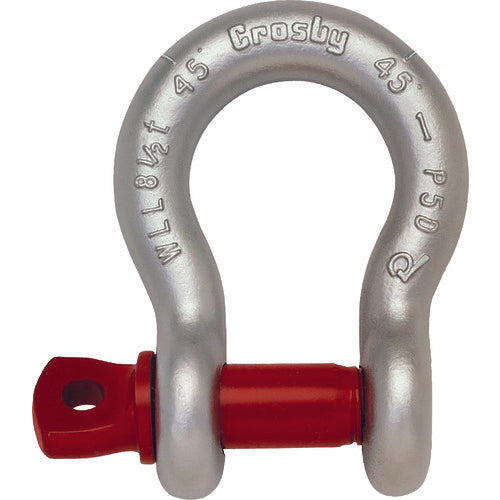

Crosby Shackle Screw-in Bow 0.33t G209-5 1 pc
Crosby Shackle Screw-in Bow 0.33t G209-5 1 pc
Regular price
¥3,049
Regular price
Sale price
¥3,049
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

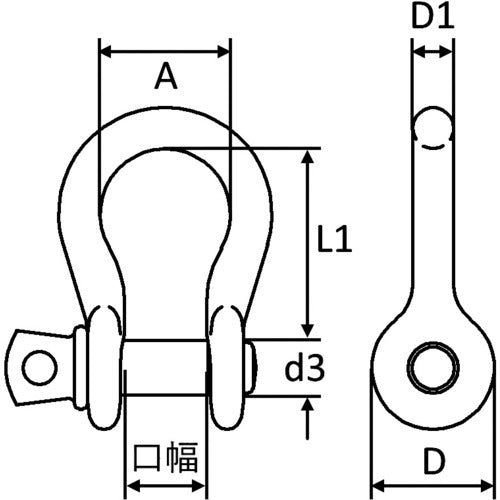

Catalogue number: G209-5 Features: ●Features a zinc-plated body and red pins. Applications: ●For various connections at loading, transporting, civil engineering, and other sites. Specifications: ●Basic load capacity (t): 0.33 ●Jaw width (mm): 9.65 ●d (mm): 14.2 ●Dimension (mm) A: 15.2 ●Dimension (mm) d3: 6.35 ●Dimension (mm) a: 15.2 ●Dimension (mm) L1: 22.4 ●Dimension (mm) D: 14.2 ●Dimension (mm) D1: 4.85 ●Bow/screw-in type Material/Finish: ●Alloy steel
