クロスビー社

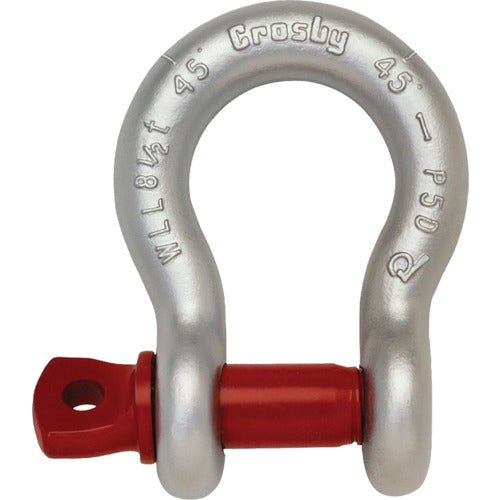

Crosby Shackle Screw-in Bow 12t G209-33 1 pc
Crosby Shackle Screw-in Bow 12t G209-33 1 pc
Regular price
¥28,974
Regular price
Sale price
¥28,974
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

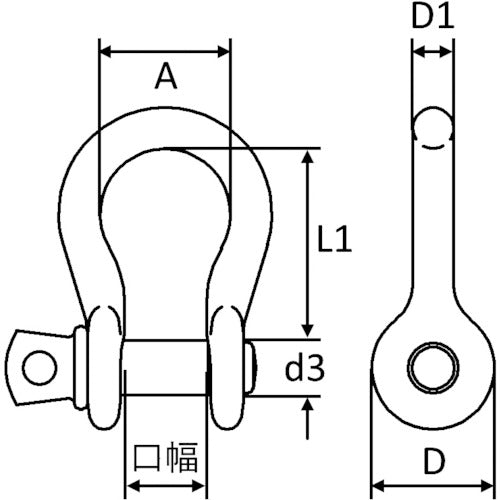

Catalogue number: G209-33 Features: ●Features a zinc-plated body and red pins. Applications: ●For various connections at loading, transporting, civil engineering, and other sites. Specifications: ●Basic load capacity (t): 12 ●Jaw width (mm): 51.5 ●d (mm): 76.0 ●Dimension (mm) A: 82.5 ●Dimension (mm) d3: 35.10 ●Dimension (mm) a: 82.5 ●Dimension (mm) L1: 119.0 ●Dimension (mm) D: 76.0 ●Dimension (mm) D1: 32.80 ●Bow/screw-in type Material/Finish: ●Alloy steel
