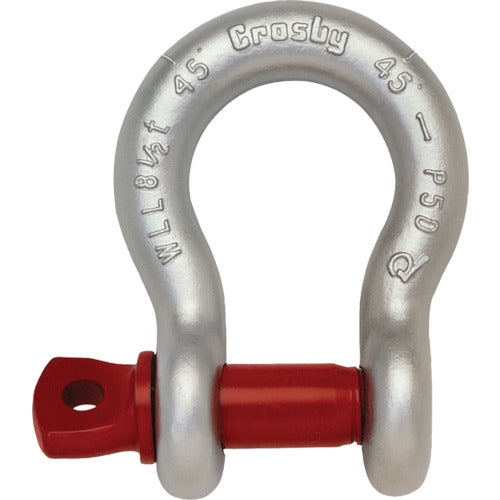

Crosby Shackle Screw-in Bow 13.5t G209-36 1 pc
Crosby Shackle Screw-in Bow 13.5t G209-36 1 pc
Regular price
¥33,502
Regular price
Sale price
¥33,502
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

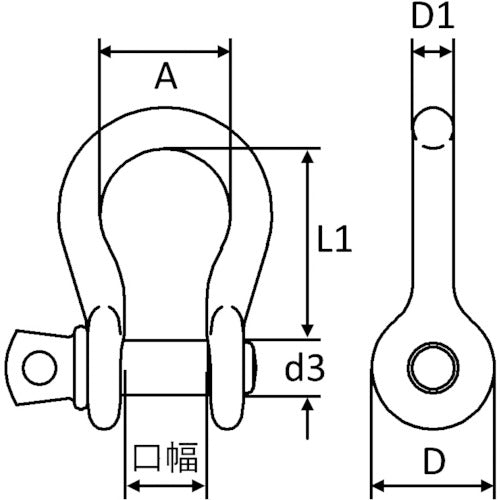

Catalogue number: G209-36 Features: ●Features a zinc-plated body and red pins. Applications: ●For various connections at loading, transporting, civil engineering, and other sites. Specifications: ●Basic load capacity (t): 13.5 ●Jaw width (mm): 57.0 ●d (mm): 84.0 ●Dimension (mm) A: 92.0 ●Dimension (mm) d3: 38.10 ●Dimension (mm) a: 92 ●Dimension (mm) L1: 133.0 ●Dimension (mm) D: 84.0 ●Dimension (mm) D1: 36.10 ●Bow/screw-in type Material/Finish: ●Alloy steel
