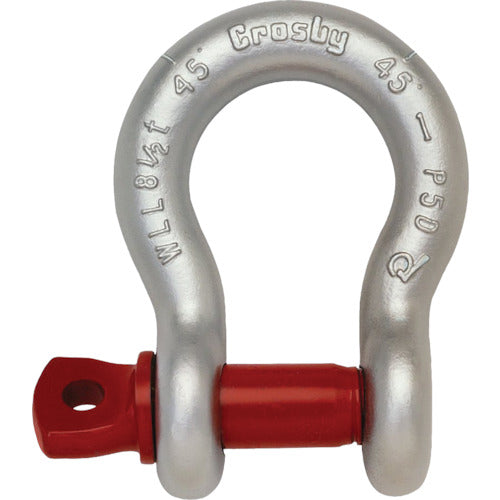

Crosby Shackle Screw-in Bow 8.5t G209-25 1 pc
Crosby Shackle Screw-in Bow 8.5t G209-25 1 pc
Regular price
¥12,778
Regular price
Sale price
¥12,778
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

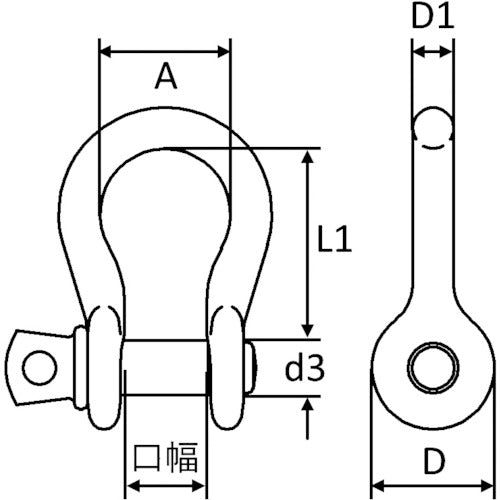

Catalogue number: G209-25 Features: ●Features a zinc-plated body and red pins. Applications: ●For various connections at loading, transporting, civil engineering, and other sites. Specifications: ●Basic load capacity (t): 8.5 ●Jaw width (mm): 42.9 ●d (mm): 60.5 ●Dimension (mm) A: 68.5 ●Dimension (mm) d3: 28.70 ●Dimension (mm) a: 68.5 ●Dimension (mm) L1: 95.5 ●Dimension (mm) D: 60.5 ●Dimension (mm) D1: 25.40 ●Bow/screw-in type Material/Finish: ●Alloy steel
