Crosby Shackle Bolt-Nut Bow 12t G2130-32 1 piece
Crosby Shackle Bolt-Nut Bow 12t G2130-32 1 piece
Regular price
¥35,099
Regular price
Sale price
¥35,099
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

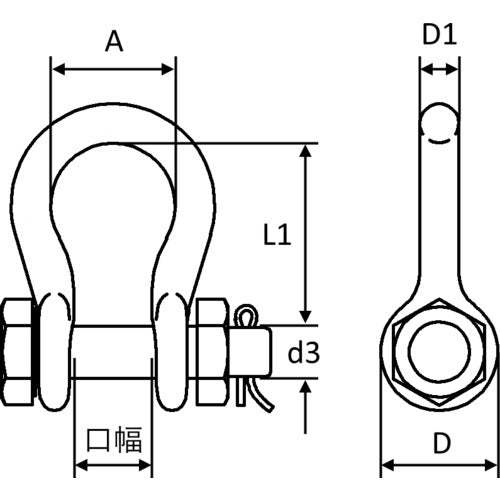

Catalogue number: G2130-32 Features: ●Features a zinc-plated body and red pins. Applications: ●For various connections at loading, transporting, civil engineering, and other sites. Specifications: ●Basic load capacity (t): 12 ●Opening width (mm): 51.5 ●Dimension (mm) A: 82.50 ●Dimension (mm) d3: 35.10 ●Dimension (mm) a: 82.5 ●Dimension (mm) L1: 119.0 ●Dimension (mm) D: 76.0 ●Dimension (mm) D1: 31.80 ●Bow bolt and nut type Material/Finish: ●Alloy steel Set contents/Accessories: ●1 main body, 1 set of bolts and nuts, 1 split pin
