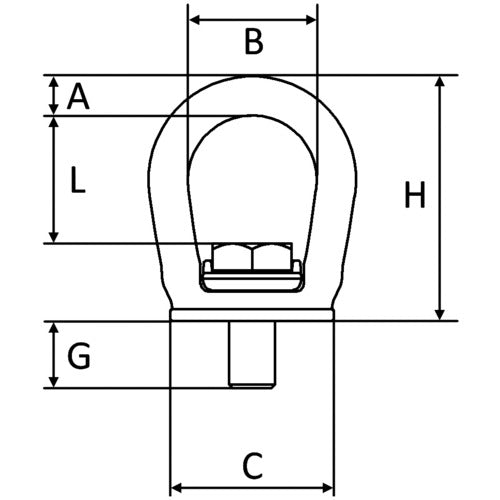

Catalog number: SL-150-M12 Features: ●Can be locked at the desired point without the need for tools. ●Can be used for normal vertical hanging as well as horizontal hanging with the same load capacity. Applications: ●For lifting heavy objects. Specifications: ●Basic load capacity (t): 0.75 ●Bolt size: M12 ●B (mm): 33 ●Dimension (mm) A: 10.5 ●Dimension (mm) B: 33.0 ●Dimension (mm) C: 42.5 ●Dimension (mm) G: 18.1 ●Dimension (mm) H: 62.6 ●Dimension (mm) L: 32.9 ●Pitch (mm): 1.75 ●Thread diameter: M12 Material/Finish: ●Alloy steel
