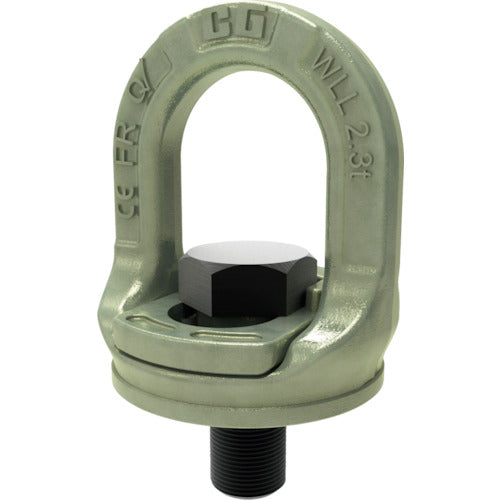

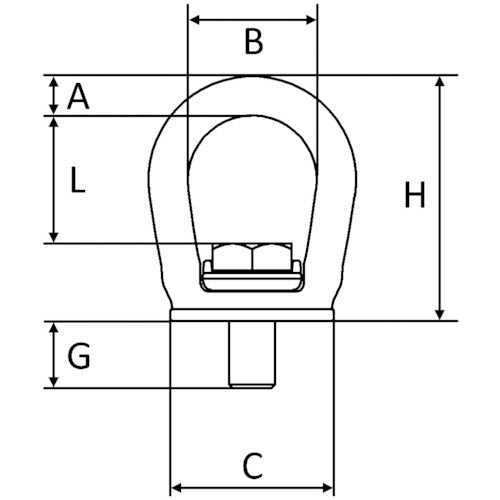

Catalogue number: SL-150-M24 Features: ●Can be locked at the desired point without the need for tools. ●Can be used for normal vertical hanging as well as horizontal hanging with the same load capacity. Applications: ●For lifting heavy objects. Specifications: ●Basic load capacity (t): 3.2 ●Bolt size: M24 ●B (mm): 52.8 ●Dimension (mm) A: 19.2 ●Dimension (mm) B: 52.8 ●Dimension (mm) C: 82.5 ●Dimension (mm) G: 37 ●Dimension (mm) H: 110.0 ●Dimension (mm) L: 52.8 ●Pitch (mm): 3 ●Thread diameter: M24 Material/Finish: ●Alloy steel
