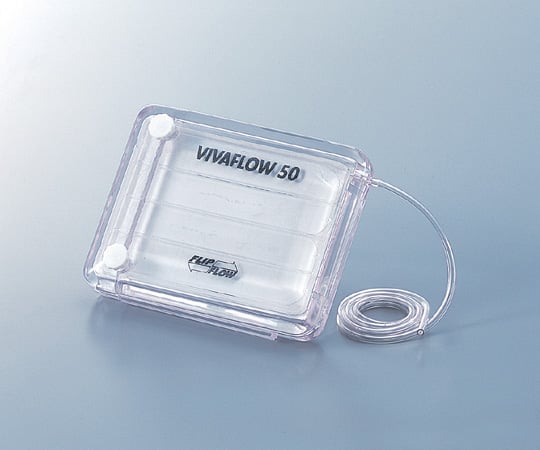

Crossflow filtration (Vivaflow(R) 50 flip flow filtration/PES) 10,000MWCO 1 box (2 pieces) VF05P0 1 box (2 pieces)

Since the fluid circulates through a narrow flow path using flip flow, high speed cross flow is possible even with a small pump capacity. It can concentrate 500mL to less than 15mL in 50 minutes. Most of the material can be recovered with a single rinse (10 mL). For samples of 100mL to 5L or more. Size: 107 x 84 x 25mm Channel (width x height): 15 x 0.3 mm Effective filtration area: 50cm2 Liquid remaining: 1.5mL Minimum circulating volume: <10 mL Unrecoverable volume: <0.5mL Pump flow rate: 200-400mL/min Applicable pressure range: 1.5 to 3 bar Maximum operating temperature: 60℃ Material: Housing: PC (polycarbonate), flow path: TPXR (PMP), seal/O-ring: silicone, restrictor: PP (polypropylene), connection: nylon, tube: PVC (medical grade) Accessories: Size 16 tubing with Luer fittings, flow restrictor, and connector for connection Vivaflow(R) 50 Flip Flow Filtration Model number: VF05P0 10,000MWCO Membrane material: PES Quantity: 2 *MWCO stands for molecular weight cutoff. RoHS2 (EU)2015/863 compliant [About RoHS]
