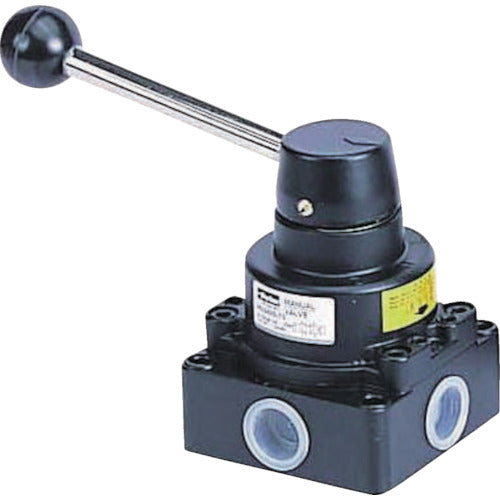

Catalogue number: HV4200-8 Features: ● The actuator can be directly driven manually. ● Three positions allow for intermediate and emergency stop operation. ● Metal seal ensures long life. Specifications: ● Effective cross-sectional area (mm2): 9.2 ● Connection diameter: Rc1/4 ● Number of ports: 4 ● Width (mm): 128 ● Depth (mm): 62 ● Height (mm): 99 ● Operating pressure (MPa): 0-1 ● Fluid used: Air ● Total height (mm): 99 ● Fluid temperature: -5 to 60°C (no freezing) ● Operating pressure: 0-1MPa
