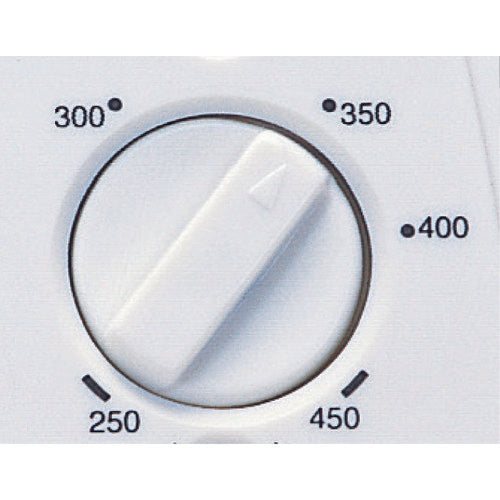

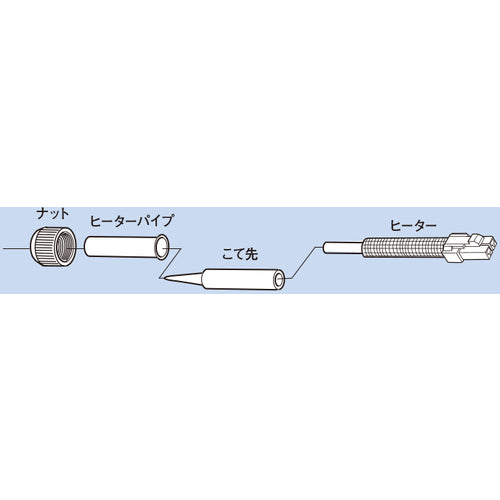

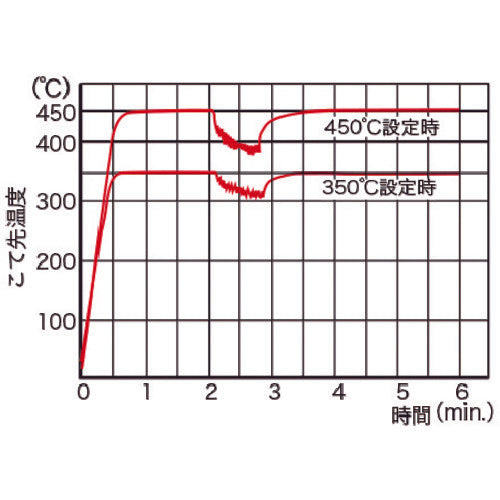

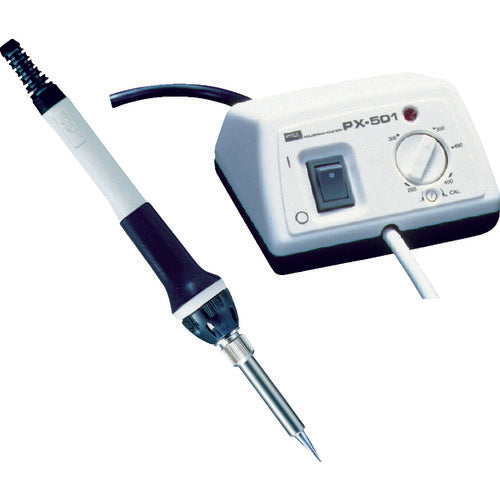

Catalog number: PX-501 Features: ●Easy-to-use newly designed grip. ●Quick start circuit (PAT.) for quick start from power on to set temperature. ●Equipped with a temperature calibration volume as standard, allowing accurate temperature calibration when replacing the soldering iron tip or heater. ●Uses a ceramic heater with excellent electrical insulation and thermal conductivity. Applications: ●For soldering to mounting boards and precision printed circuit boards. Specifications: ● Power supply (V): AC100 ● Power consumption (W): 85 ● Set temperature (℃): 250-450 ● Width (mm): 100 ● Depth (mm): 85 ● Height (mm): 57 ● Heater capacity (W): 80 ● Insulation resistance: 100MΩ or more ● Included soldering iron tip: PX-60RT-B ● Cord: 3-core cord, earth pin plug 1.5m ● Insulation resistance (500VDC): 100MΩ or more ● Anti-static measures (PX-501AS) Set contents/accessories: ● Main unit (control unit), soldering iron part, soldering iron tip (PX-60RT-B)
