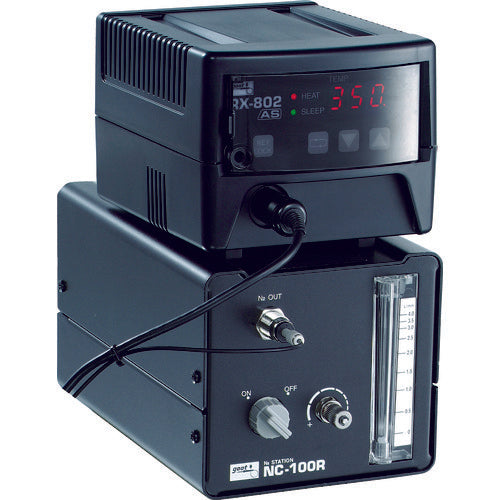

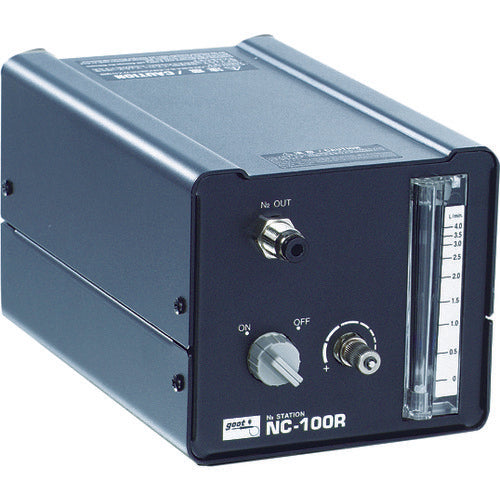

GUT Soldering N2 Station NC-100R 1 unit

Catalogue number: NC-100R Features: ● A compact N2 station that integrates an N2 generator and controller. ● The built-in regulator keeps the output gas pressure (0.2 MPa) constant. ● No power supply required. Applications: ● For generating and controlling nitrogen gas (N2). Specifications: ● Width (mm): 118 ● Depth (mm): 185 ● Height (mm): 112 ● Input air temperature (℃): 5 to 50 ● Input air pressure (MPa): 0.3 to 0.7 ● N2 gas generation concentration: Maximum 99.9% (0.7 MPa, 0.5 liters/min) ● Recommended N2 gas generation flow rate: 1.0 liters/min ● Input air pressure: 0.3 to 0.7 MPa ● Input air temperature 5 to 50℃
