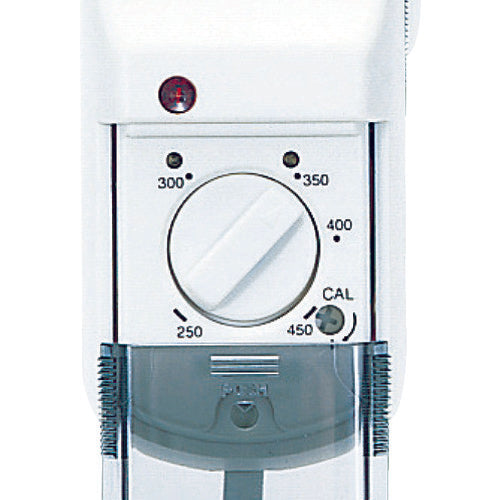

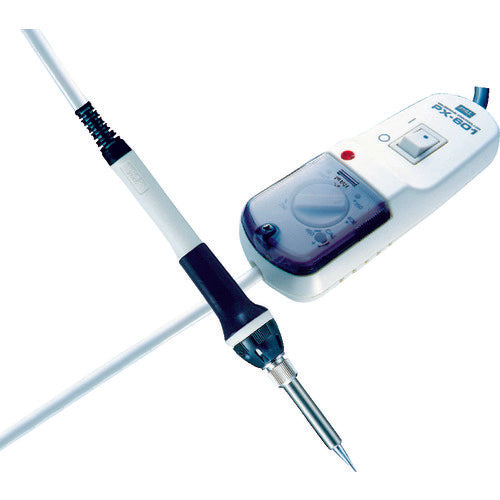

GUT Soldering Controller PX-601 1 piece

Catalog number: PX-601 Features: ●Easy-to-use newly designed grip. ●Quick start circuit (PAT.) for quick start from power on to set temperature. ●Uses a ceramic heater with excellent electrical insulation and thermal conductivity. ●Equipped with a temperature calibration volume as standard, allowing accurate temperature calibration when replacing the tip or heater. ●Comes with leakage current/insulation resistance measurement terminals. Specifications: ●Power supply (V): AC100 ●Power consumption (W): 85 ●Set temperature (℃): 200-450 ●Width (mm): 48 ●Depth (mm): 130 ●Height (mm): 31 ●Lead-free solder compatible: Yes ●Heater capacity (W): 80 ●Included tip: PX-60RT-B ●Color: White ●Tip cord length (m): 1.2 ●Power cord length (m): 1.5 ●Rated voltage (V): 100 ●Compatible tip: P X-60G ●Temperature control method: Sensor feedback (ON-OFF control) ●Cord: 3-core cord, earth pin plug 1.2m ●Temperature accuracy: Set value ±5℃ (no load) ●Insulation resistance (500VDC): 100MΩ or more ●Earth resistance: 2Ω or less ●Leak voltage: Less than 2mV ●Heater: Ceramic heater ●Iron cord length: 2m ●Iron voltage: 100V ●Iron power: 80W Set contents/accessories: ●Main unit (control unit), iron, iron tip (PX-60RT-B)
