太洋電機産業(株)

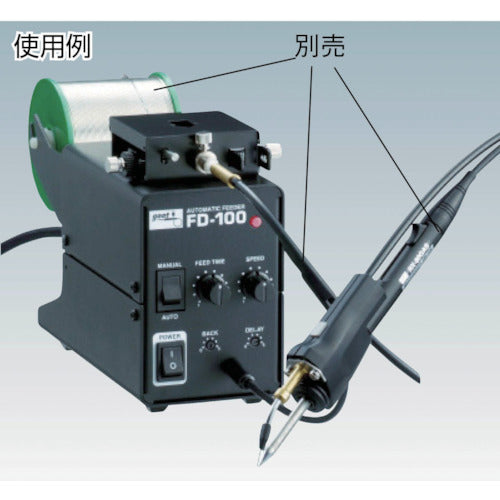

Gut Lead-free solder compatible automatic solder feeder FD-100 1 unit
Gut Lead-free solder compatible automatic solder feeder FD-100 1 unit
Regular price
¥49,368
Regular price
Sale price
¥49,368
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: FD-100 Features: ●Compatible with φ1.6 lead-free solder. ●Straight feed with less solder clogging. ●Can be attached to your existing soldering iron later. Applications: ●For automatic solder supply. Specifications: ●Power supply (V): 100-240 ●Power consumption (W): 8 ●Width (mm): 82 ●Depth (mm): 140 ●Height (mm): 210 ●Compatible models: RX-802AS/822AS/852AS/701AS/711AS ●Rated voltage (V): AC100-240 ●Compatible soldering iron: RX-80GAS/81GAS/85GAS ●Power consumption: 8W ●Solder feed speed: 6-22mm/sec (unloaded) ●Solder feed time: 0-4 sec ●Solder return amount: 0-5mm (constant speed) ●Compatible solder: φ0.6-1.6
