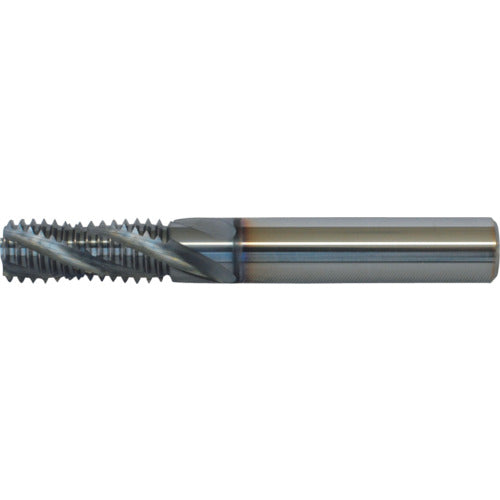

Guhring Thread Cutting Tool for Machine Tools, Solid Carbide Thread Milling Cutter with Oil Hole, M20 x Pitch 1.5mm, 3737 20.007, 1 Piece

Catalog number: 3737 20.007 Features: ● If the pitch is the same, different diameters can be machined with one tool. ● Right-handed and left-handed threads can be machined with one tool. ● Effective threads can be generated to the bottom of the blind hole. Applications: ● Workpiece material: carbon steel, alloy steel, stainless steel, heat-resistant alloy (Hastelloy, Inconel, etc.). Specifications: ● Nominal size: M20 ● Pitch (mm): 1.5 ● Blade diameter (mm): 14.95 ● Blade length (mm): 42.8 ● Total length (mm): 102 ● Number of blades (pieces): 4 ● Shank diameter (mm): 16 ● Surface treatment: Titanium carbonitride (TiCN) ● Thread: For metric thread inner diameter (ISO) Material/Finish: ● Ultra-fine grain carbide
