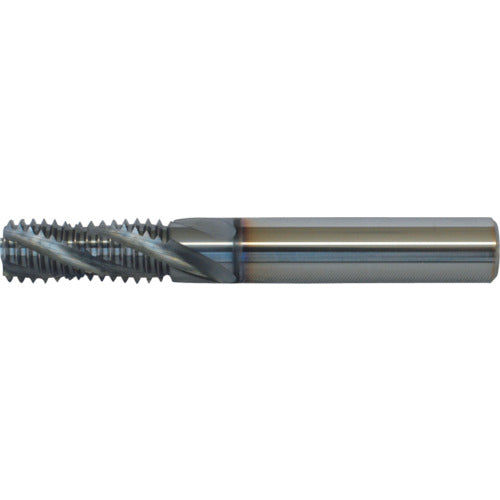

Guhring Thread Cutting Tool for Machine Tools, Solid Carbide Thread Milling Cutter with Oil Hole, M8 x Pitch 1.25mm, 3737 8.000, 1 Piece

Catalogue number: 3737 8.000 Features: ● If the pitch is the same, different diameters can be machined with one tool. ● Right-handed and left-handed threads can be machined with one tool. ● Effective threads can be generated to the bottom of the blind hole. Applications: ● Workpiece: carbon steel, alloy steel, stainless steel, heat-resistant alloys (Hastelloy, Inconel, etc.). Specifications: ● Nominal size: M8 ● Pitch (mm): 1.25 ● Blade diameter (mm): 6.4 ● Blade length (mm): 18.1 ● Total length (mm): 62 ● Number of blades (pieces): 3 ● Shank diameter (mm): 8 ● Surface treatment: Titanium carbonitride (TiCN) ● Thread: For metric thread inner diameter (ISO) Material/Finish: ● Ultra-fine grain carbide
