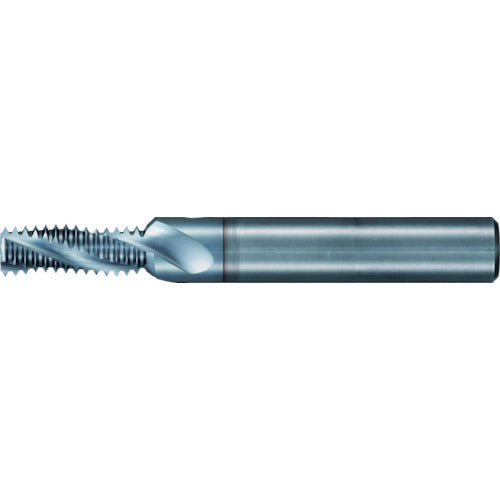

Guhring Thread Cutting Tool for Machine Tools Solid Carbide Thread Milling Cutter M20 x Pitch 2.5mm 4133 20.000 1 piece

Catalogue number: 4133 20.000 Features: ● If the pitch is the same, one tool can be used to machine different diameters. ● Right-handed and left-handed threads can be machined with one tool. ● Effective threads can be generated to the bottom of the blind hole. Applications: ● Workpiece: carbon steel, alloy steel, stainless steel, heat-resistant alloys (Hastelloy, Inconel, etc.). Specifications: ● Nominal size: M20 ● Pitch (mm): 2.5 ● Blade diameter (mm): 14.95 ● Blade length (mm): 41.3 ● Total length (mm): 102 ● Number of blades (pieces): 4 ● Shank diameter (mm): 16 ● Surface treatment: Titanium carbonitride (TiCN) ● Thread: For metric threads (ISO) Material/Finish: ● Ultra-fine grain carbide
