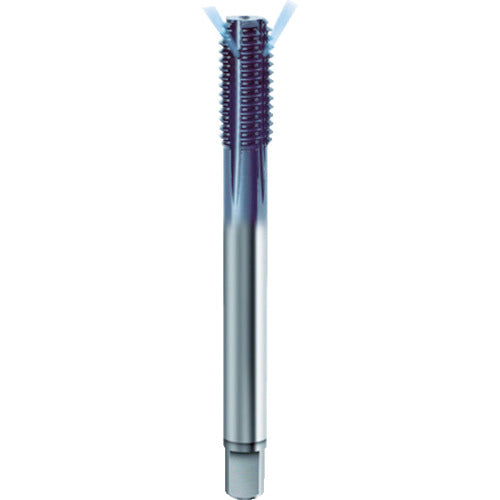

Guhring TiAlN carbide rolling tap, normal thread, M6.0X1.0, 4447-M6.0X1.0, 1 piece

Catalog number: 4447-M6.0X1.0 Features: ●No chips are produced because the thread is formed by plastic deformation. ●Coolant duct included. Applications: ●For blind hole and through hole machining. ●Workpiece: Aluminum, copper, stainless steel, ductile steel. Specifications: ●Accuracy: RH7 ●Accuracy notation: Standard ●Nominal size: M6 ●Pitch (mm): 1.00 ●Thread length (mm): 11.00 ●Total length (mm): 62 ●Shank diameter (mm): 6.0 ●Shank square section (mm): 4.5 ●Pilot hole diameter (mm): 5.55 ●Number of engagement threads: 2 to 3 threads ●Machined thread: Metric thread ●Surface treatment: TiAlN coating Material/Finish: ●Carbide Caution: ●Pilot hole machining has a large effect on the accuracy of the screw. ●Please be careful when drilling pilot holes.
