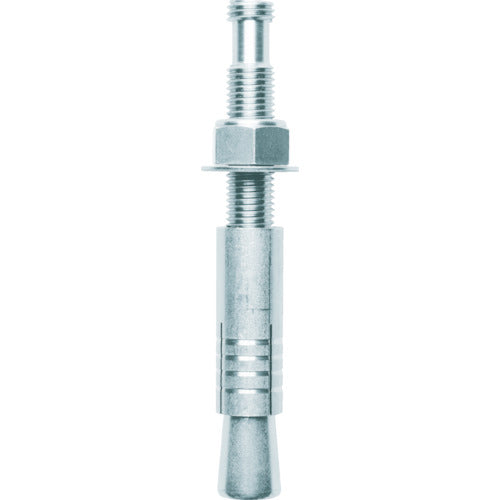

K.F.C. Safety Anchor, Stainless Steel, SKB12140, 100 Pieces

Catalog number: SKB12140 Features: ●An anchor system with double safety measures of "loosening prevention" and "nut drop prevention". ●In the unlikely event of loosening, the step on the anchor thread will stop the nut from falling off. Applications: ●For concrete. For installation of architecture, electricity, piping, signs, handrails, chairs, etc. ●For installation of architecture, electricity, piping, signs, handrails, chairs, etc. Specifications: ●Screw designation: M12 ●Total length (mm): 140 ●Sleeve length (mm): 65 ●Maximum thickness of object to be attached (mm): 30 ●Maximum tensile load (kN): 28 ●Embedded depth (mm): 72 ●Outer diameter (mm): 17.3 ●Effective embedded depth (mm): 72 ●Counterbore diameter (mm): 18 ●Drill diameter (mm): 18 ●Thickness of object to be attached (mm): 30 ●Special driving rod: SB-12 ●End screw length (mm): 4.5 ●Boxed ●Special driving rod: SB-12 Material/Finish: ●Stainless steel Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［M2］］.
