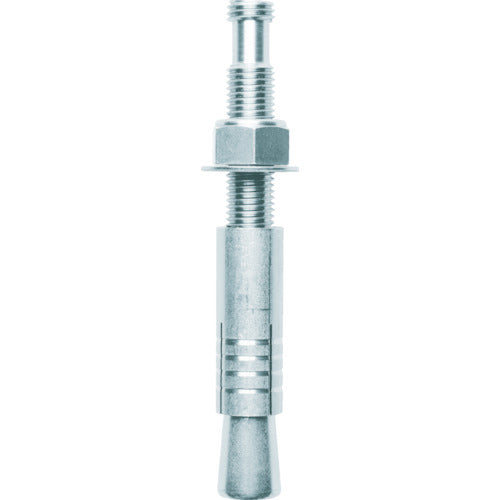

K.F.C. Safety Anchor Stainless Steel SKB16170 50 Pieces

Catalog number: SKB16170 Features: ●An anchor system with double safety measures of "loosening prevention" and "nut drop prevention". ●In the unlikely event of loosening, the step on the anchor thread will stop the nut from falling off. Applications: ●For concrete. For installation of architecture, electricity, piping, signs, handrails, chairs, etc. ●For installation of architecture, electricity, piping, signs, handrails, chairs, etc. Specifications: ●Screw designation: M16 ●Total length (mm): 170 ●Sleeve length (mm): 70 ●Maximum thickness of object to be attached (mm): 45 ●Maximum tensile load (kN): 38 ●Embedded depth (mm): 82 ●Outer diameter (mm): 21.7 ●Effective embedment depth (mm): 82 ●Counterbore diameter (mm): 22.5 ●Drill diameter (mm): 22.5 ●Thickness of object to be attached (mm): 45 ●Special driving rod: SB-16L ●End screw length (mm): 5.25 ●Boxed ●Special driving rod: SB-16L Material/Finish: ●Stainless steel Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［M2］］.
