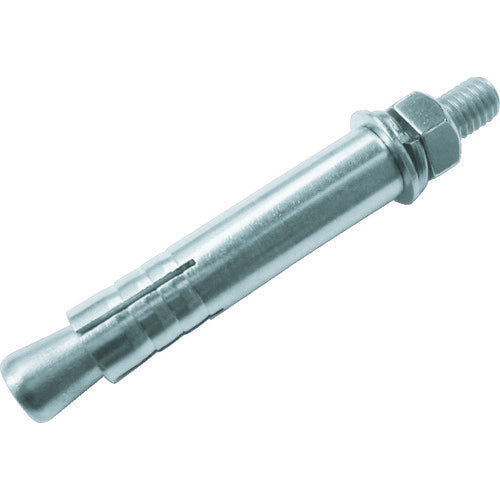

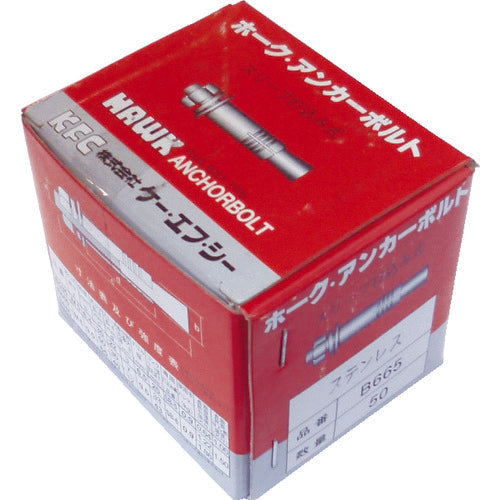

K.F.C. Hawk Anchor Bolt B Type Stainless Steel (1 box: 50 pieces) SUS B665 50 pieces

Catalog number: SUS B665 Features: ● Widely and generally used with little variation in strength. ● After casting, tighten the included nut sufficiently to allow the expansion section to expand and obtain more stable strength. Applications: ● For concrete. For installation in architecture, civil engineering, electricity, lighting, machinery, signs, etc. Specifications: ● Screw size: M6 ● Total length (mm): 65 ● Maximum thickness of mounting object (mm): 12 ● Maximum tensile load (kN): 10.0 ● Embedded depth (mm): 43 ● Outer diameter (mm): 9.5 ● Screw length (mm): 42.5 ● Pilot hole diameter (mm): 9.5 ● Boxed Material/Finish: ● Stainless steel (SUS304 series) Note: ● Maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
