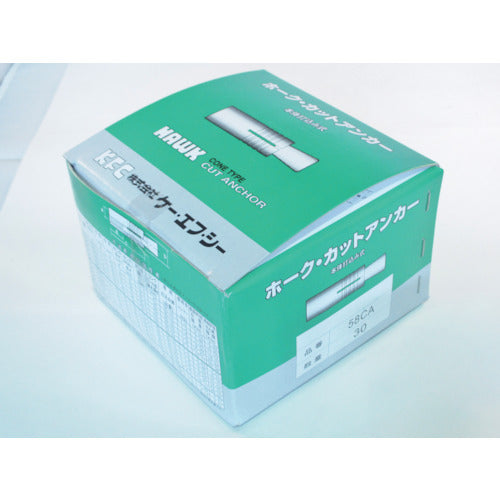

K.F.C. Hawk Cut Anchor CA Type Steel 58CA 30 Pieces

Catalog number: 58CA Features: ● A representative product of the "female thread type". Applications: ● For concrete. For installation in architecture, light ceilings, temporary scaffolding, civil engineering, electrical engineering, air conditioning, machinery, signs, etc. ● For installation in architecture, civil engineering, electrical engineering, lighting, machinery, signs, etc. Specifications: ● Screw size: W5/8 ● Outer diameter (mm): 21.4 ● Total length (mm): 60 ● Screw length (mm): 24 ● Drill diameter (mm): 22.0 ● Maximum tensile load (kN): 41.0 ● Boxed Material/Finish: ● Steel ● Surface treatment: Electrogalvanized Note: ● The maximum tensile load is the value when the concrete strength is Fc18N/[MM2].
