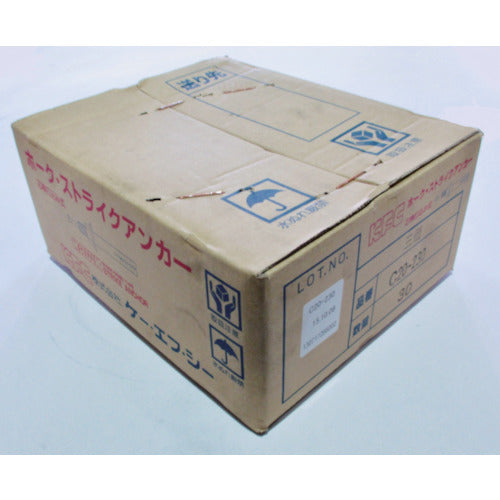

K.F.C. Hawk Strike Anchor C Type Steel M20 Total Length 230 C20-230 30 Pieces

Catalog number: C20-230 Features: ●The nominal diameter of the male thread and the diameter of the anchor body are the same, so installation can be done from above the object to be attached. ●The anchor can be expanded by casting the core rod, so a driving rod is not required. Applications: ●For concrete. For installation in architecture, electricity, plumbing, signs, handrails, chairs, etc. Specifications: ●Nominal thread: M20 ●Total length (mm): 230 ●Thread length (mm): 50 ●Maximum thickness of object to be attached (mm): 123 ●Drill hole diameter (mm): 21.5 ●Maximum tensile load (kN): 40.0 ●Embedding depth (mm): 90 ●Outer diameter (mm): 80 ●Head diameter dk (mm): 20 ●Boxed Material/Finish: ●Steel ●Surface treatment: Electrogalvanized Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
