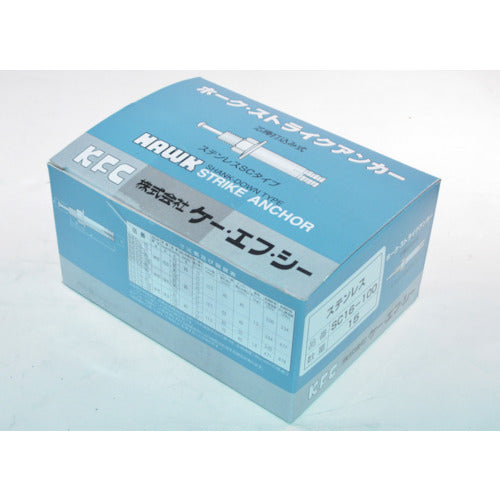

K.F.C. Hawk Strike Anchor C Type SUS M16 Total Length 100 SUS C16-100 15 Pieces

Catalog number: SUS C16-100 Features: ●The nominal diameter of the male thread is the same as the diameter of the anchor body, so it can be installed from above the object to be attached. ●The anchor can be expanded by casting the core rod, so a driving rod is not required. Applications: ●For concrete. For installation in architecture, electricity, plumbing, signs, handrails, chairs, etc. Specifications: ●Nominal thread: M16 ●Total length (mm): 100 ●Thread length (mm): 40 ●Maximum thickness of object to be attached (mm): 17 ●Drill hole diameter (mm): 17 ●Maximum tensile load (kN): 30 ●Embedding depth (mm): 70 ●Outer diameter (mm): 60 ●Head diameter dk (mm): 16 ●Boxed Material/Finish: ●Stainless steel (equivalent to SUS304) Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
