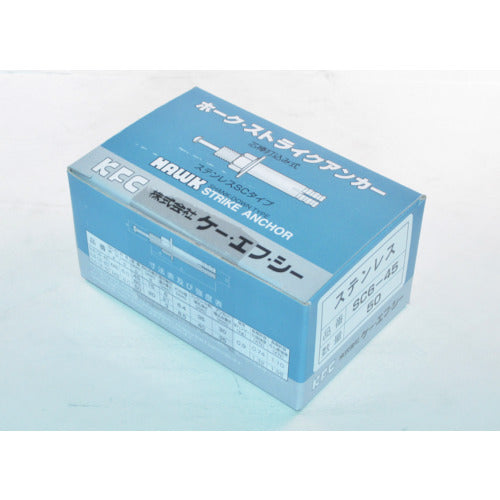

K.F.C. Hawk Strike Anchor C Type SUS M6 Total Length 45 SUS C6-45 50 Pieces

Catalog number: SUS C6-45 Features: ●The nominal diameter of the male thread is the same as the diameter of the anchor body, so it can be installed from above the object to be attached. ●The anchor can be expanded by casting the core rod, so a driving rod is not required. Applications: ●For concrete. For installation in architecture, electricity, plumbing, signs, handrails, chairs, etc. Specifications: ●Nominal thread: M6 ●Total length (mm): 45 ●Thread length (mm): 15 ●Maximum thickness of object to be attached (mm): 6 ●Drill hole diameter (mm): 6.4 ●Maximum tensile load (kN): 3.5 ●Embedding depth (mm): 35 ●Outer diameter (mm): 30 ●Head diameter dk (mm): 6 ●Boxed Material/Finish: ●Stainless steel (equivalent to SUS304) Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
