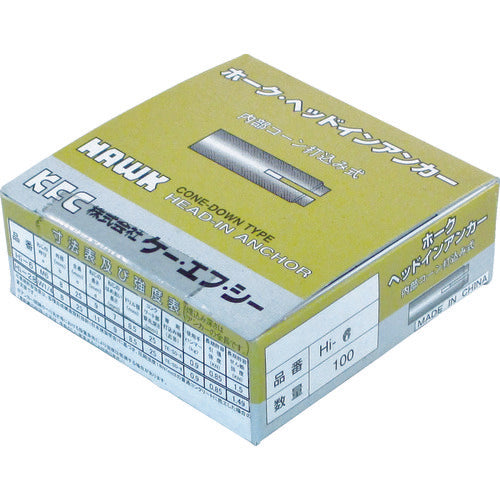

K.F.C. Hawk Head-in Anchor HI Type Steel HI-12 50 Pieces

Catalog number: HI-12 Features: ●A compactly designed "female thread type" anchor with a built-in cone. ●When casting, the convex part of the dedicated driving rod is completely inserted into the main body, which serves as a guide for casting completion, making construction management easy. Applications: ●For concrete. ●For installation in architecture, light ceilings, civil engineering, electrical engineering, air conditioning, machinery, signs, etc. Specifications: ●Screw size: M12 ●Outer diameter (mm): 16.0 ●Total length (mm): 50 ●Screw length (mm): 18 ●Drill diameter (mm): 16.5 ●Maximum tensile load (kN): 22.0 ●Boxed Material/Finish: ●Steel ●Electrogalvanized Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
